$10,617.00

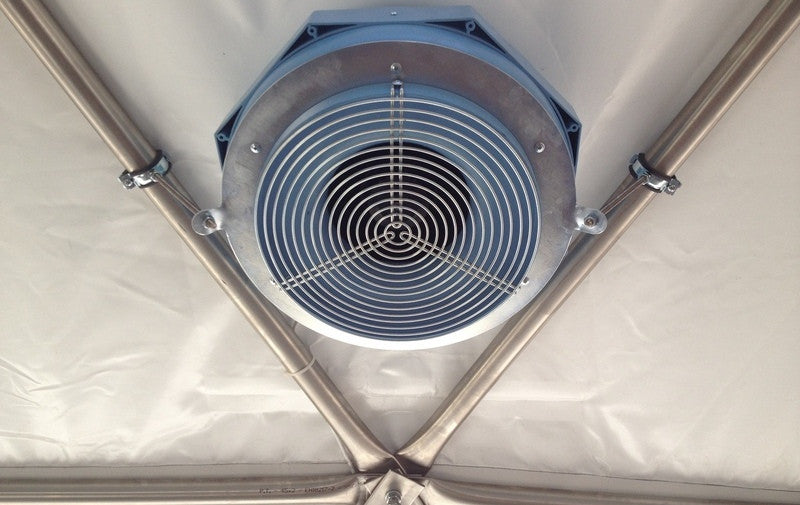

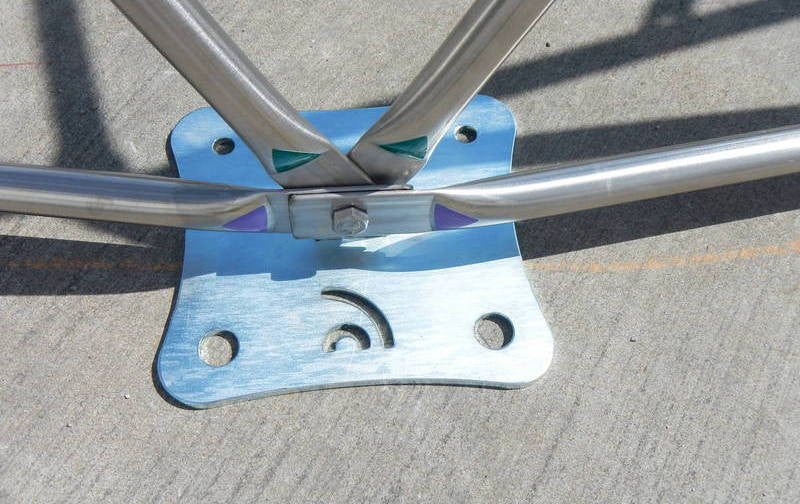

Complete dome consists of dome frame including 2 entrance frames, base plates and screws, cover including 2 zipper close GS = Galvanized steel (zinced) doors, transparent windows up to 5% of cover surface, 5x ventilation openings, special transport pallets and bags, documentation
The IGLOO geodesic range of multi purpose, extra-strong, geodesic domes are ideal for temporary or permanent shelter.
The entire super strong frame is made using stainless steel or galvanized steel, covered by strong flame retardant PVC fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
TYPE | |||||||||
BASIC DATA | 600-4 | 800-4 | 1000-5 | 1250-6 | 1500-6 | 1800-6 | 2000-6 | 2100-6 | 2700-6 |
Frequency | 4V | 4V | 5V | 6V | 6V | 6V | 6V | 6V | 6V |
Diameter (mts / ft) | 6 / 20 | 8 / 26 | 10 / 33 | 12.5 / 41 | 15 / 50 | 18 / 60 | 20 / 66 | 21 / 70 | 27 / 90 |
Height (mts / ft) | 3.5 / 12 | 4.6 / 15 | 5.7 / 18 | 6.2 / 20 | 7.5 / 25 | 9 / 30 | 10 / 33 | 10.5 / 35 | 13.5 / 45 |
Floor Space (sqm) | 28 | 50 | 75 | 125 | 175 | 255 | 310 | 345 | 570 |
Approximate capacity (people) | |||||||||
Standing (Disco) | 40 | 70 | 115 | 180 | 260 | 380 | 460 | 520 | 860 |
Standing (Cocktail) | 20 | 40 | 60 | 100 | 140 | 200 | 250 | 290 | 470 |
Sitting (Cinema) | 22 | 45 | 80 | 110 | 165 | 45 | 290 | 320 | 530 |
