Steel Frame Integrated Wooden Flooring

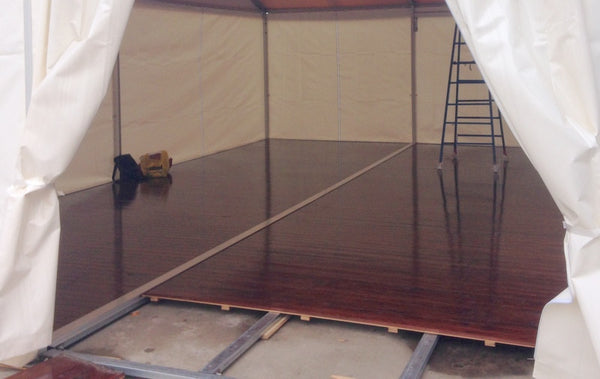

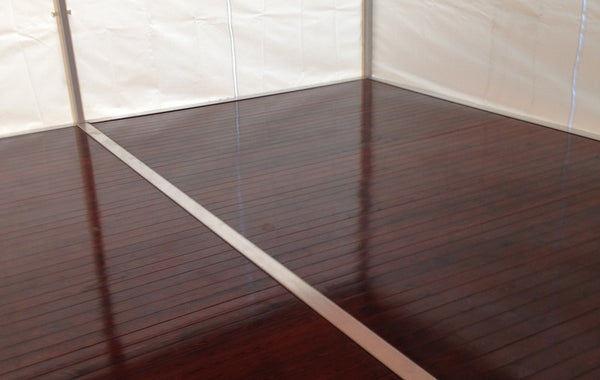

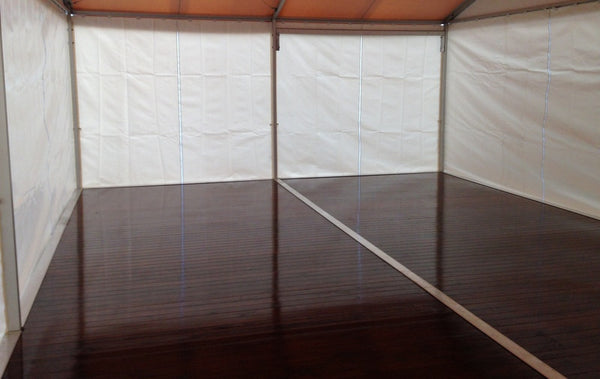

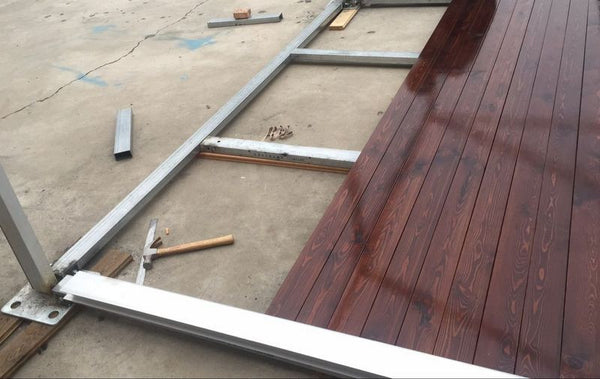

Designed to be a quick and easy floor system to install, our integrated flooring system has a steel substructure base on top of which we place high grade PU coated floorboards slotted into the aluminium bearers and supported by steel crossmembers.  Marquees are connected directly to the aluminium bearers using the integrated flooring baseplates. As with all of our structures the flooring is modular and can be supplied in various formats.

  • Pricing is per square meter based on standard dimensions
    • custom sizes and shapes available on request
  • very fast assembly & dismantle
  • Modular sections can be customised to suit the length of any marquee
  • ideal for uneven surfaces
  • integrated with the marquee providing 100% waterproof structure & greater safety
  • protects the surface it lays on (grass areas, tennis courts)
  • Flooring Weights - Your Substructure Floor System can be supplied with a hidden weight system
    • removing the need to use stakes or external visible ballast
  • Specifications
    • Alu sub frame profile: 68mmx31mmx31mm
    • Steel tube: 40*80mm
    • Wood dimensions: 30( thickness) x80( width)x3000mm(length)
    • Polyurethane coated stained scots pine (Pinus sylvestris L. var. mongolica Litv)
    • Total height from the ground: aprox 71mm
